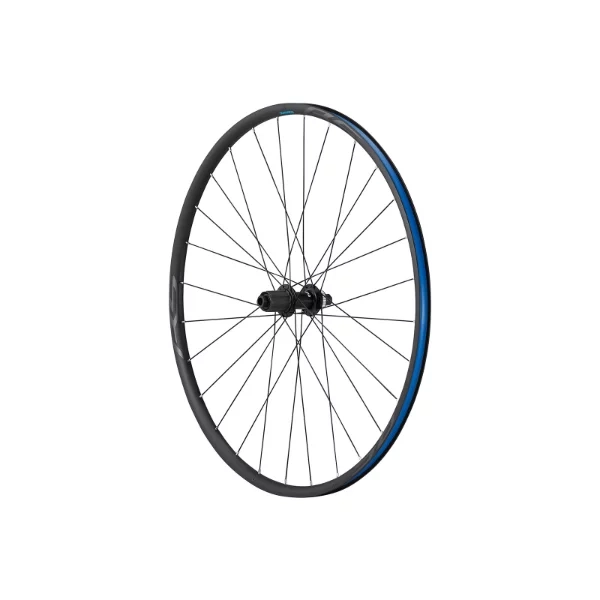

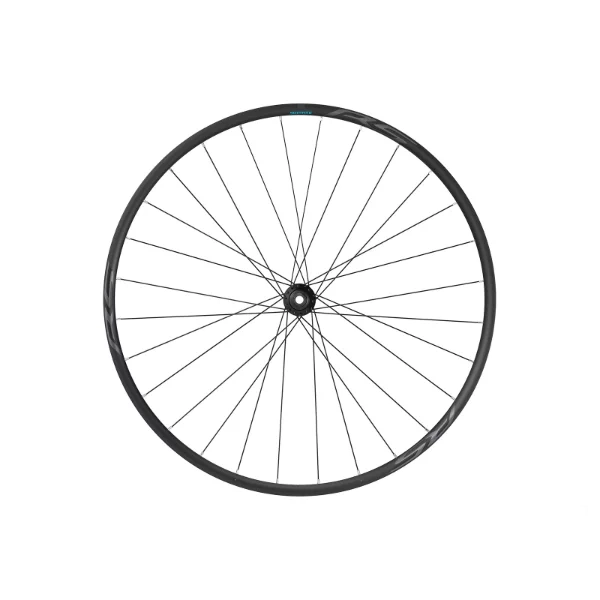

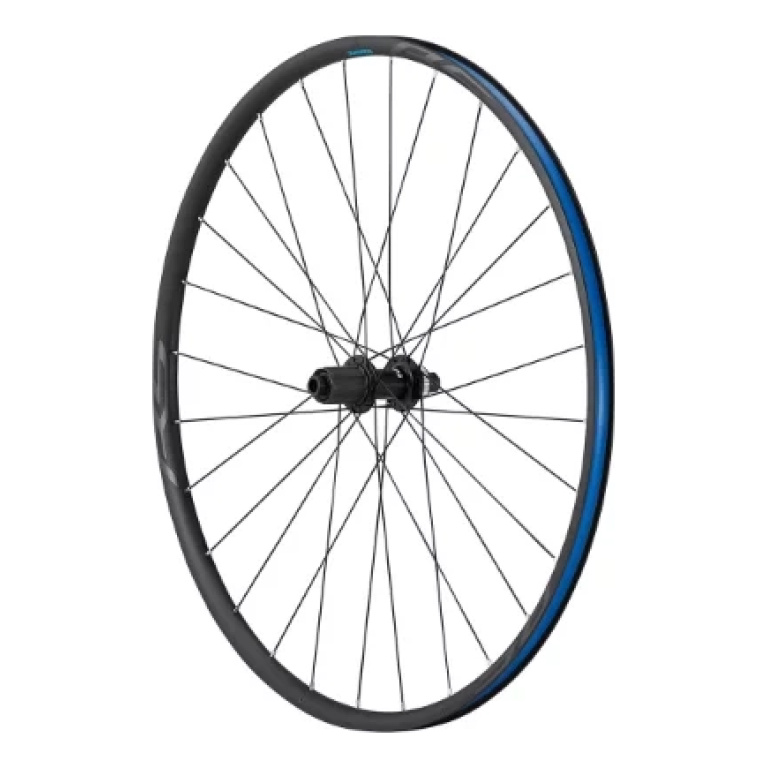

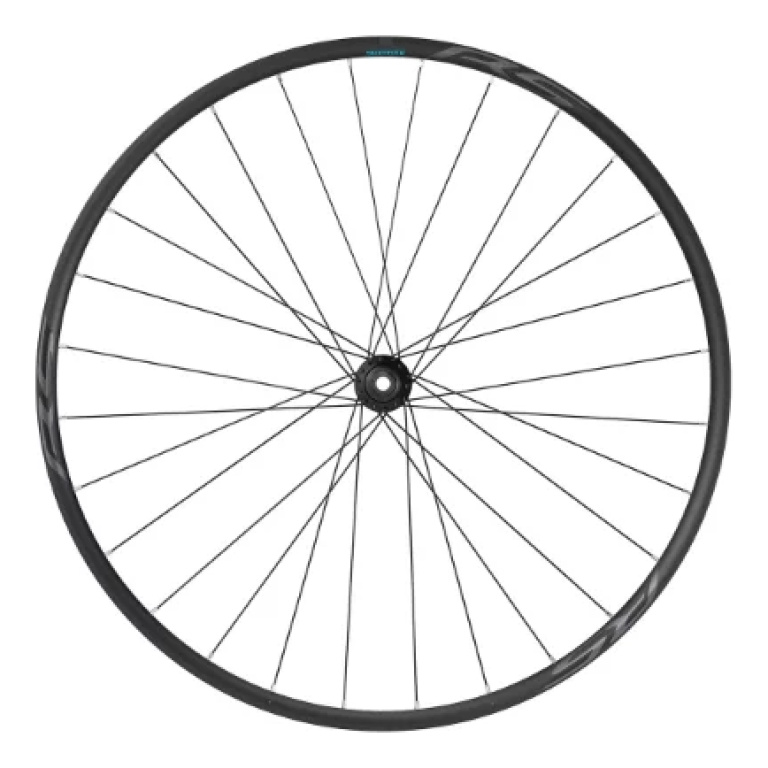

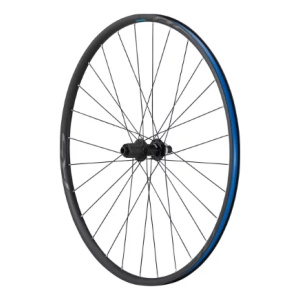

Shimano WH-RS171 Road Wheel


Want a discount? Become a member by purchasing Champion Membership - 1 Year!
SKU: N/A Categories: , Tag: Brand:

Already a member? Login to see your member only pricing on this item.

100% of your purchase goes toward achieving our mission of empowering young people facing barriers to work by offering them employment pathways. Find out more


  • Wider and lighter
  • 19C wide-profile rim provides better performance with wider tires
  • More than 100 g lighter than previous model (WH-RS170)
  • SHIMANO quality and technology
  • Rigid 12 mm axle for both front and rear
  • E-THRU
  • Reliable disc brake system
  • CENTER LOCK mount
  • 140 mm disc brake rotor compatible


Color Black
Average weight 897
Brake type CENTER LOCK disc brake
Axle fixing method 12 mm E-THRU
Internal grease sleeve
O.L.D. (mm) 100
Axle_Fixing method 12 mm E-THRU
Thru axle (length x inner diameter ; mm)_100 x 12
Disc mount_140 mm Disc brake rotor compatible
Disc mount_CENTER LOCK
Front/Rear Front
Grease holding function
Reflector_AS CATEYE RR-550-WUA SW
Reflector_DIN CATEYE RR-317-WUA SW
Rim_Height (mm) 19
Rim_Requires rim tape
Rim_Rim joint Sleeved
Rim_Width (mm) 24.6
Seal_Hub Contact
Spokes_Number 28
Tire_Recommended size 28-622 – 42-622
Tire_Type Clincher
Wheel Size 622 x 19C (700c)
Color_1 Hub shell Black
Model name WH-RS171-CL
Rim_External width (mm) 24.6
Spokes_Diameter (mm) 2
Specification F12-700c
