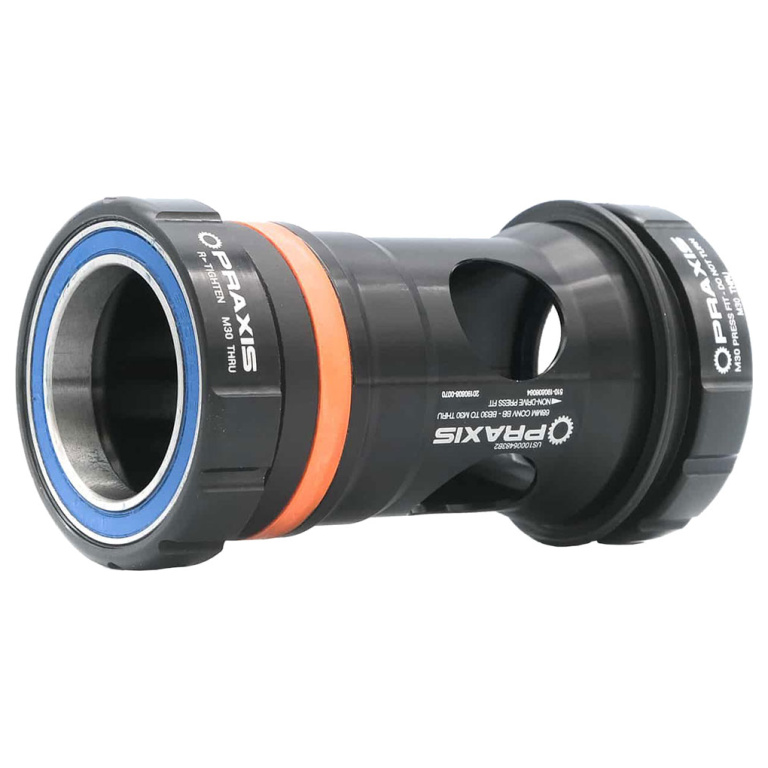

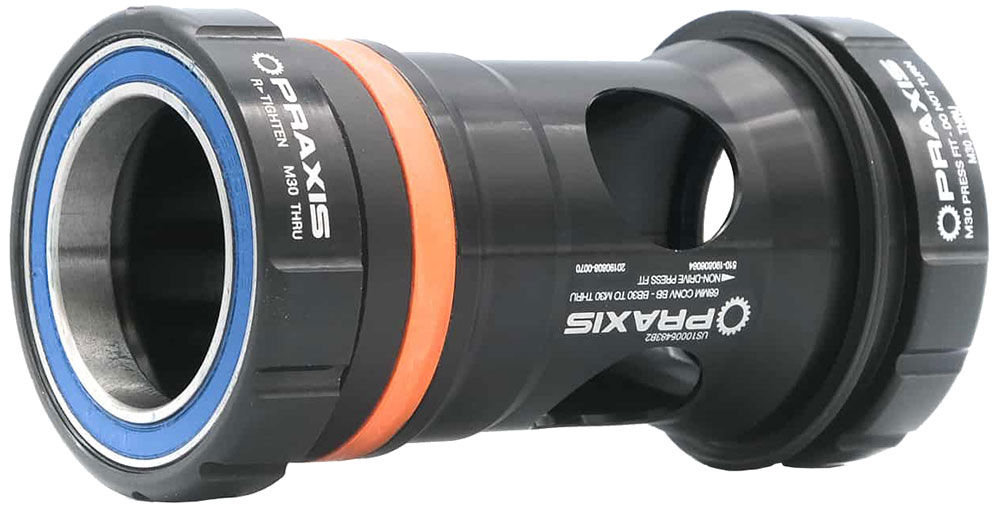

Praxis Works Bottom Bracket M30

With this intelligent conversion bottom bracket from Praxis Works cranks with M30THRU aluminium axle (such as the Lyft Carbon) in MTB frames with BB30 or PF30 brackets. It also works well with 30mm cranks from other brands such as SRAM, RaceFace/Easton “Cinch” cranks and Rotor Rex/3D+.

The patented system ensures a secure fit without creaking or cracking, while the built-in high-end ball bearings from Enduro Bearings guarantee a smooth running and maximum reliability for a long time to come. An all-round high-quality solution.

Features – Praxis Works BB30/PF30 M30-THRU Bottom Bracket

• Only for 30mm/30mm spindle cranks being installed on a 73mm BB30/PF30 MTN frame

Product features

• Use: MTB
• BB-Type: BB30/PressFit 30
• Bearing housing width: 73 mm
• Bearing housing diameter: 42mm(BB30) / 46mm(PF30)
• Crank shaft diameter: 30mm drive side / 30mm non-drive side
• Bearing: steel cartridge bearing
• Compatibility: Praxis Works cranks with M30THRU aluminium axle and 30mm cranks from other manufacturers

Note: This specific M30 bottom bracket requires two of M30 socket tools along with a press tool/drift for installation.

Material

• Bering shell: Aluminium 7075-T6
• Bearing: Steel

Weight

• 120 g (manufacturer information)
